Types of Wiring Harness in Cars (Full Guide for Beginners & Enthusiasts)

4

Modern cars are more electronic than ever. From headlights to sensors, from the ECU to the infotainment system — everything depends on wiring harnesses.

A wiring harness may look like a bunch of bundled wires, but it is actually one of the most critical systems in a vehicle.
It carries power, data, and signals that allow every electrical component to function smoothly.

This guide explains what wiring harnesses do, their types, and why choosing the right harness or connectors is essential.

1. What Is a Wiring Harness in a Car?

A wiring harness is an organized bundle of wires, connectors, terminals, and protective coverings.
Its job is to:

✔ Carry electrical power
✔ Carry sensor data
✔ Connect all electronic modules
✔ Provide safe and reliable communication inside the car

Without wiring harnesses, your car’s electrical system would be a tangled mess and extremely unreliable.

2. Why Are Wiring Harnesses Important?

✔ Ensures accuracy in signal transmission

ECU, ABS, airbags, transmission — all rely on perfect wiring.

✔ Improves safety

Prevents fires, shorts, and electrical overloads.

✔ Simplifies manufacturing & repair

Mechanics can replace sections instead of repairing every wire.

✔ Reduces vibration damage

Harness bundling prevents wire breakage over bumps.

3. Types of Wiring Harnesses in Cars

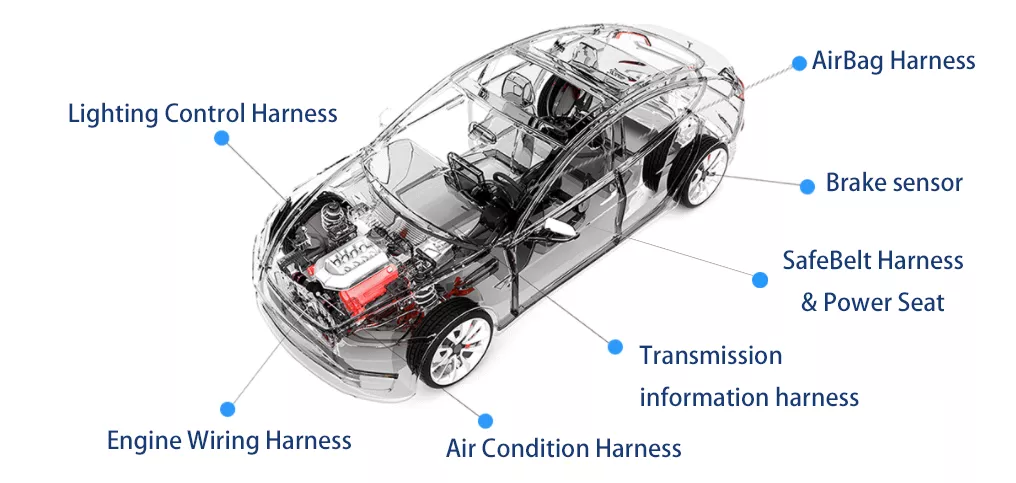

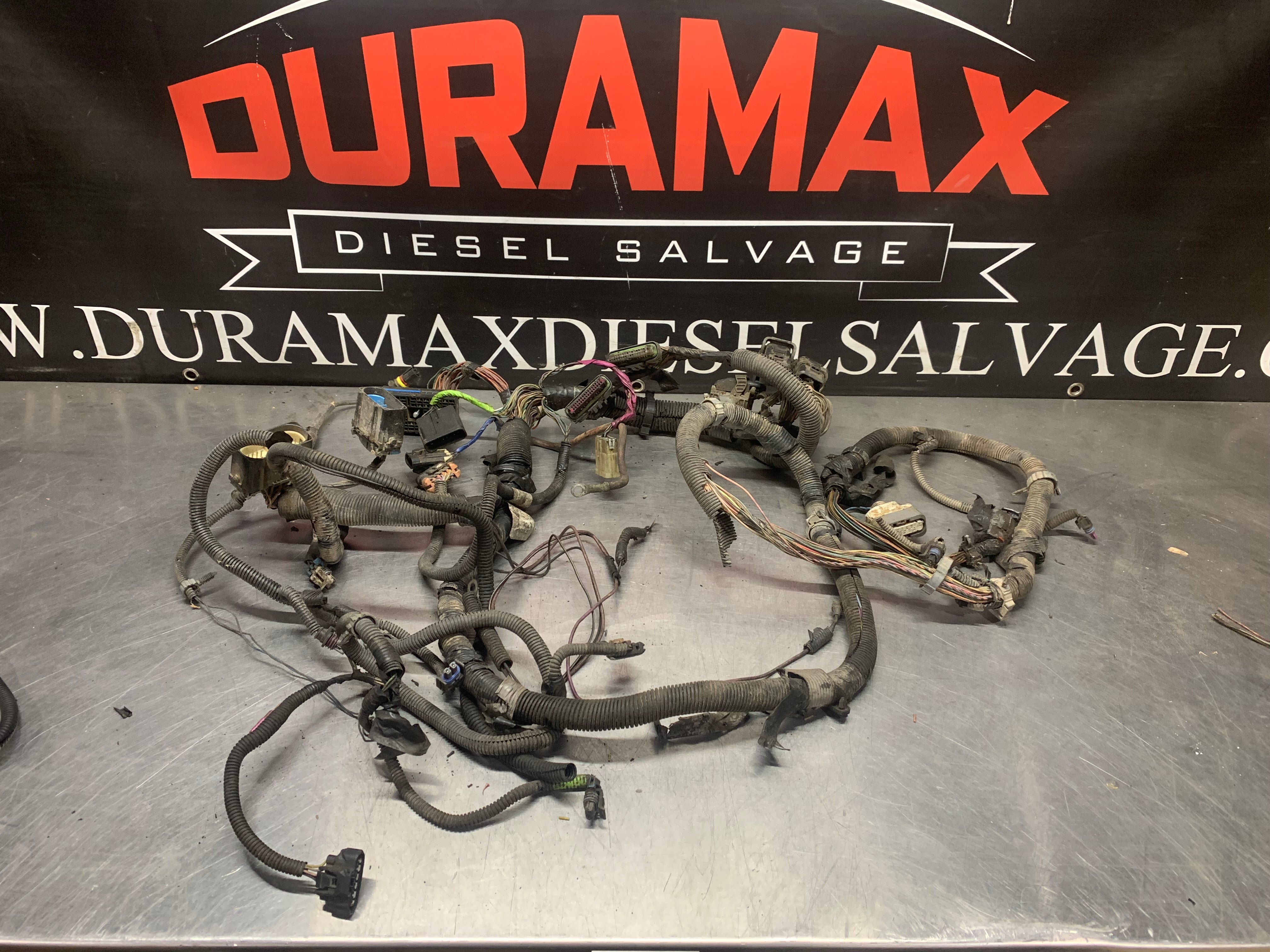

1️⃣ Engine Wiring Harness (Main Harness)

This is the most important harness in the vehicle.

It connects:

• ECU

• Injectors

• Ignition coils

• MAF/MAP sensors

• Crank & cam sensors

• Fuel pump control

• Temperature sensors

A damaged engine harness can cause misfires, stalling, and no-start issues.

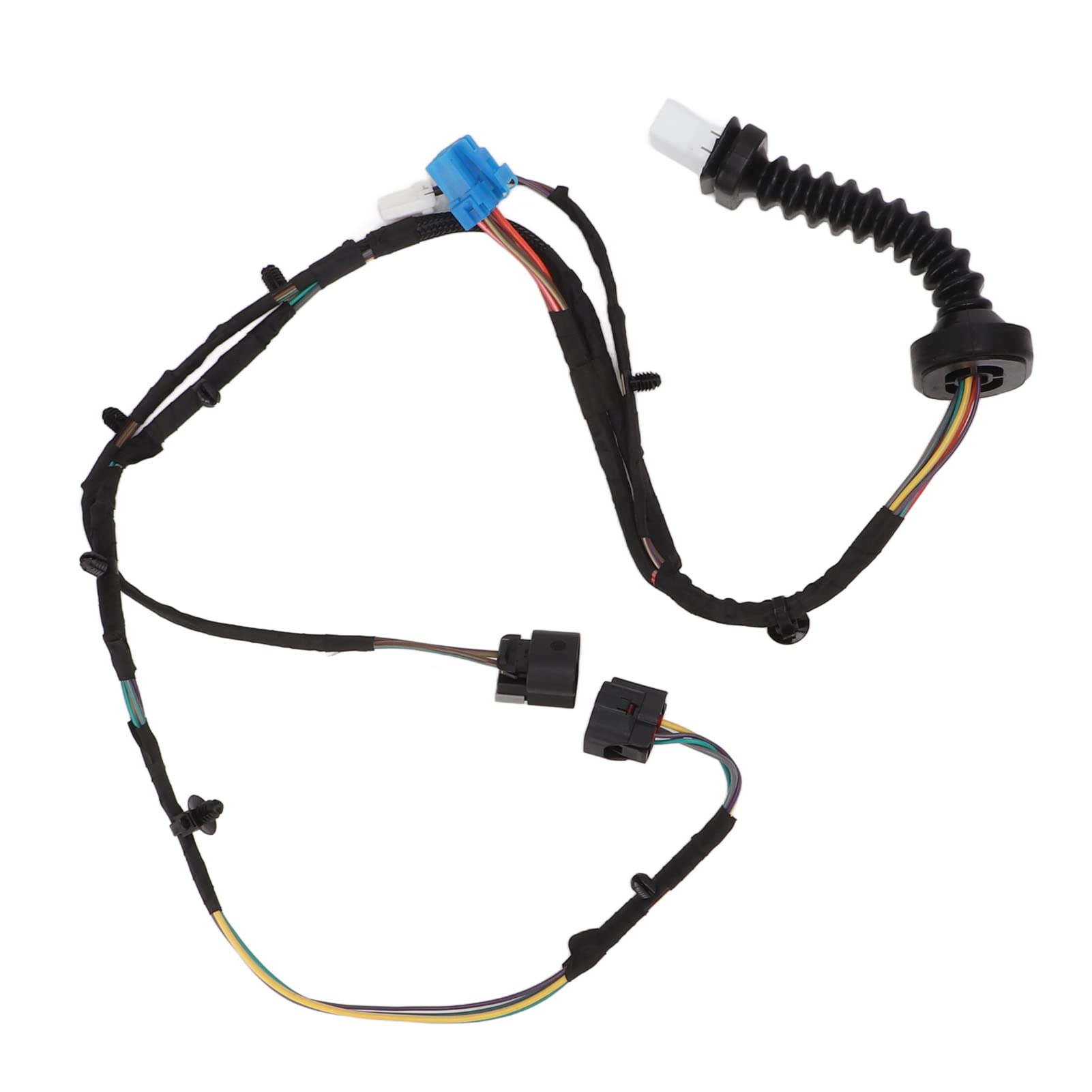

2️⃣ Body Wiring Harness

Controls comfort and convenience features like:

• Power windows

• Central locking

• Interior lights

• Horn

• Mirrors

• Switches & dashboard functions

Often routed inside doors and cabin panels.

3️⃣ Chassis Wiring Harness

Manages components mounted on the frame such as:

• Headlights & taillights

• Indicators

• ABS sensors

• Brake lights

• Fuel tank sensors

This harness faces dirt, water, and debris — so it needs strong insulation.

4️⃣ Dashboard/Instrument Cluster Harness

Connects:

• Speedometer

• Tachometer

• Warning lights

• Infotainment system

• AC controls

Complex but essential for daily driving data.

5️⃣ Battery & Power Distribution Harness

Carries high current for:

• Starter motor

• Alternator

• Main fuse box

• High-power circuits

Thick wires with heavy insulation are used for safety.

6️⃣ Transmission Wiring Harness (AT/MT/EV)

Controls:

• TCM (Transmission Control Module)

• Shift solenoids

• Speed sensors

• Clutch/gear sensors

Automatic and hybrid cars heavily rely on this harness.

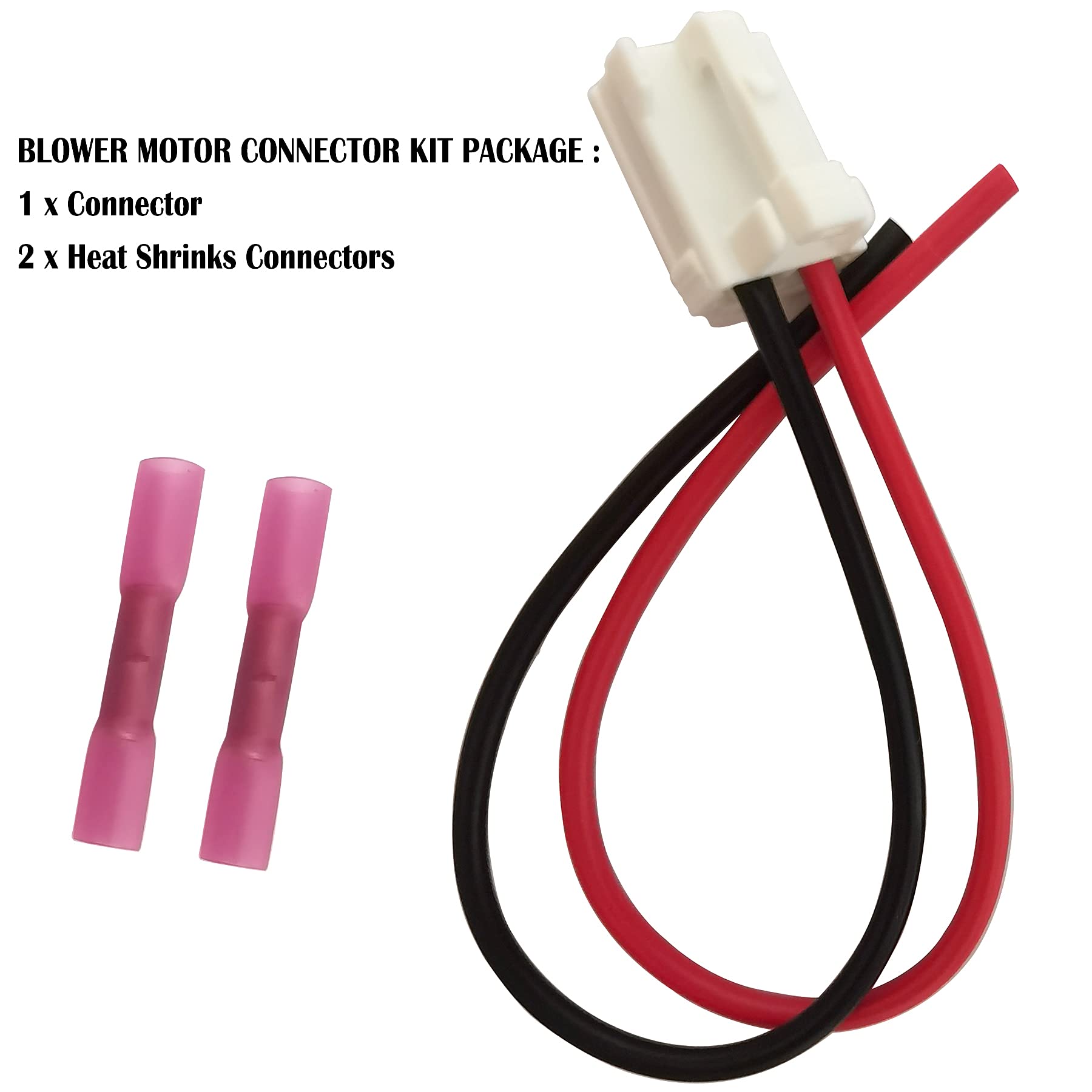

7️⃣ HVAC Wiring Harness (AC System)

Connects:

• AC compressor

• Blower motor

• Cabin temperature sensors

• Fan controls

If this harness fails → AC stops working or blows incorrect temperature.

8️⃣ Airbag/Safety Harness

Controls:

• Airbags

• Crash sensors

• Seatbelt warning

• Occupancy sensors

Any damage here is critical and affects car safety.

9️⃣ Audio & Infotainment Harness

Handles:

• Speakers

• Subwoofers

• Navigation

• Rear-view camera

• Steering-mounted controls

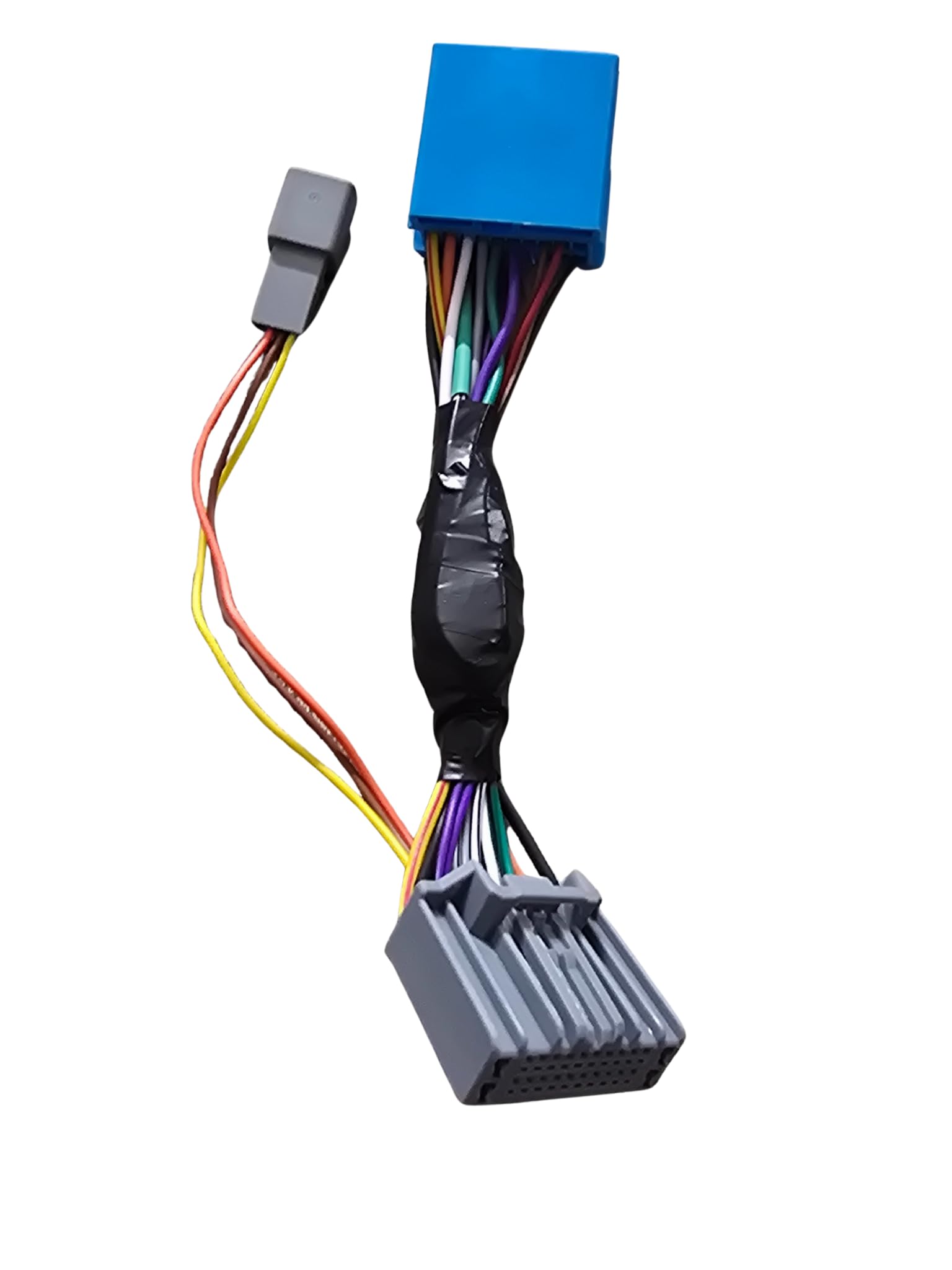

Aftermarket stereo upgrades require proper harness adapters.

🔟 EV & Hybrid High-Voltage Harness (Modern Cars)

Carries high-voltage electricity for:

• Battery pack

• Inverter

• Motor drive

• Regenerative braking

• DC-DC converter

Orange cables = high-voltage lines.
Safety and quality are critical here.

4. Common Wiring Harness Problems

⚠ Rat damage
⚠ Corroded connectors
⚠ Broken insulation
⚠ Overheating
⚠ Loose terminals
⚠ Moisture inside connectors
⚠ Sensor miscommunication (CAN bus errors)

Electrical faults can cause:

• Check engine lights

• ABS faults

• Airbag alerts

• Poor mileage

• No-start conditions

5. Why Quality Connectors & Wiring Matter

With so many sensors and electronic modules in modern cars, the reliability of wiring harnesses is more important than ever.

Poor connectors cause:

• Voltage drops

• Sensor failure

• ECU errors

• Random warning lights

• Transmission misbehavior

This is why technicians often use high-quality automotive connectors and wiring solutions from WirestoneAuto.com, especially for engine, transmission, and safety harness repairs.

6. Tips for Maintaining Car Wiring Harnesses

✔ Protect wiring from rodents

Use sprays, mesh, or engine bay covers.

✔ Avoid pressure-washing engine bay

Water can enter connectors.

✔ Regularly check battery terminals

Loose terminals damage harnesses.

✔ Use proper harness clips

Prevents wires from hanging or rubbing.

✔ Repair with proper crimping tools

Never twist-and-tape — leads to failures.

Final Thoughts

Wiring harnesses are the nervous system of your vehicle.
They ensure communication between all electrical parts while maintaining safety and performance.

Quick Summary:

✔ Engine harness → sensors + ECU
✔ Body harness → windows, locks, interior
✔ Chassis harness → lights, ABS
✔ Transmission harness → gear control
✔ Safety harness → airbags
✔ High-voltage harness → EV systems

Choosing high-quality wiring and connectors keeps your car reliable, reduces electrical faults, and protects critical systems.
