Engine Cooling System: Understanding Its Components & How It Works

4

Your engine works hard — and when it burns fuel, it generates a massive amount of heat.
Without a proper cooling system, the engine would overheat within minutes, causing damage to pistons, gaskets, sensors, and even the entire engine block.

The engine cooling system prevents this by keeping the temperature within a safe operating range. Let’s break down how it works and the components that make it all possible.

1. Why Do Engines Need Cooling?

Engines operate at extremely high temperatures — often 90°C to 105°C during normal use. Hard acceleration, hilly driving, and heavy loads push temperatures even higher.

Without cooling:

• Engine parts expand unevenly

• Oil breaks down

• Metal components warp

• Engine knocks or seizes

The cooling system ensures your engine stays alive and efficient.

2. Main Components of the Engine Cooling System

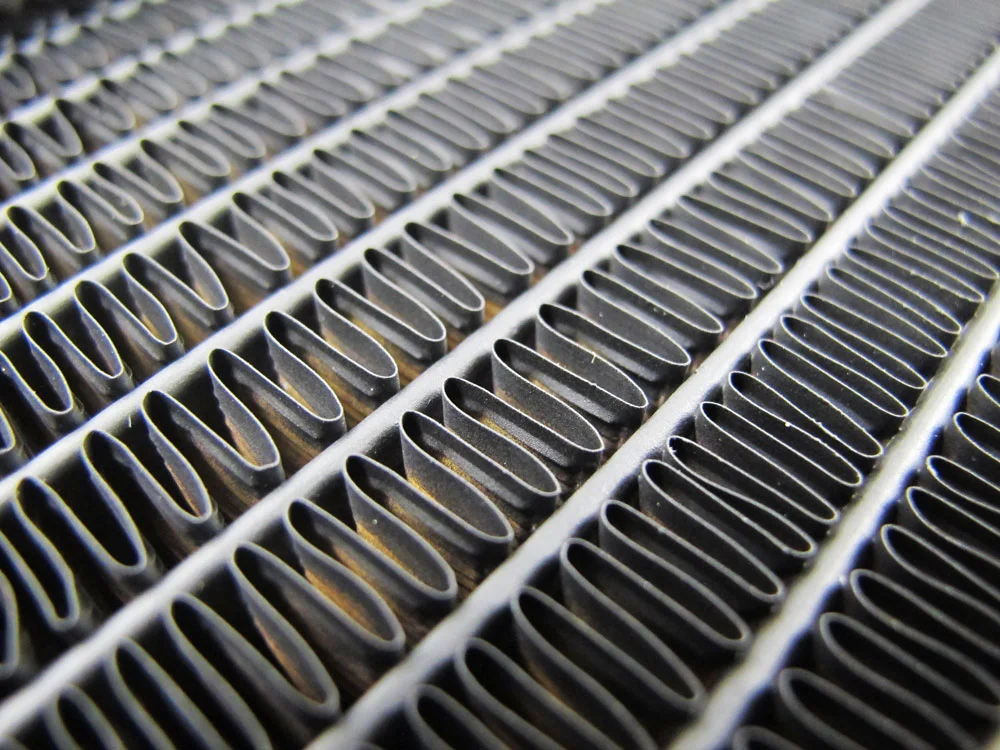

2.1 Radiator

The radiator is the heart of the cooling system.
It releases heat from the coolant into the air using thin metal fins.

Functions:

• Cools hot coolant

• Maintains optimal engine temperature

• Works with a fan for extra cooling

2.2 Coolant (Antifreeze)

Coolant absorbs engine heat and transfers it to the radiator.

Benefits of using proper coolant:

• Prevents overheating

• Stops rust & corrosion

• Lubricates the water pump

• Prevents freezing in cold climates

Using plain water is risky — it causes rust and boils quickly.

2.3 Water Pump

The water pump keeps coolant circulating throughout the engine.

Functions:

• Pushes coolant through the engine block

• Maintains pressure for consistent flow

• Prevents hotspots in cylinders

If the pump fails, overheating happens instantly.

2.4 Thermostat Valve

The thermostat controls coolant flow based on engine temperature.

How it works:

• When engine is cold → thermostat stays closed

• When engine heats to ~90°C → thermostat opens

• Coolant begins circulating

This ensures the engine warms up quickly and stays efficient.

2.5 Cooling Fan

Cooling fans provide airflow when the vehicle is stationary or moving slowly.

Types:

• Mechanical fan

• Electric fan (controlled by ECU/temp sensors)

The fan turns on automatically when coolant temperature rises too high.

2.6 Radiator Cap

The radiator cap maintains proper pressure in the system.

Why pressure matters:

Higher pressure → higher boiling point → prevents coolant from boiling over.

A faulty cap can cause coolant loss or overheating.

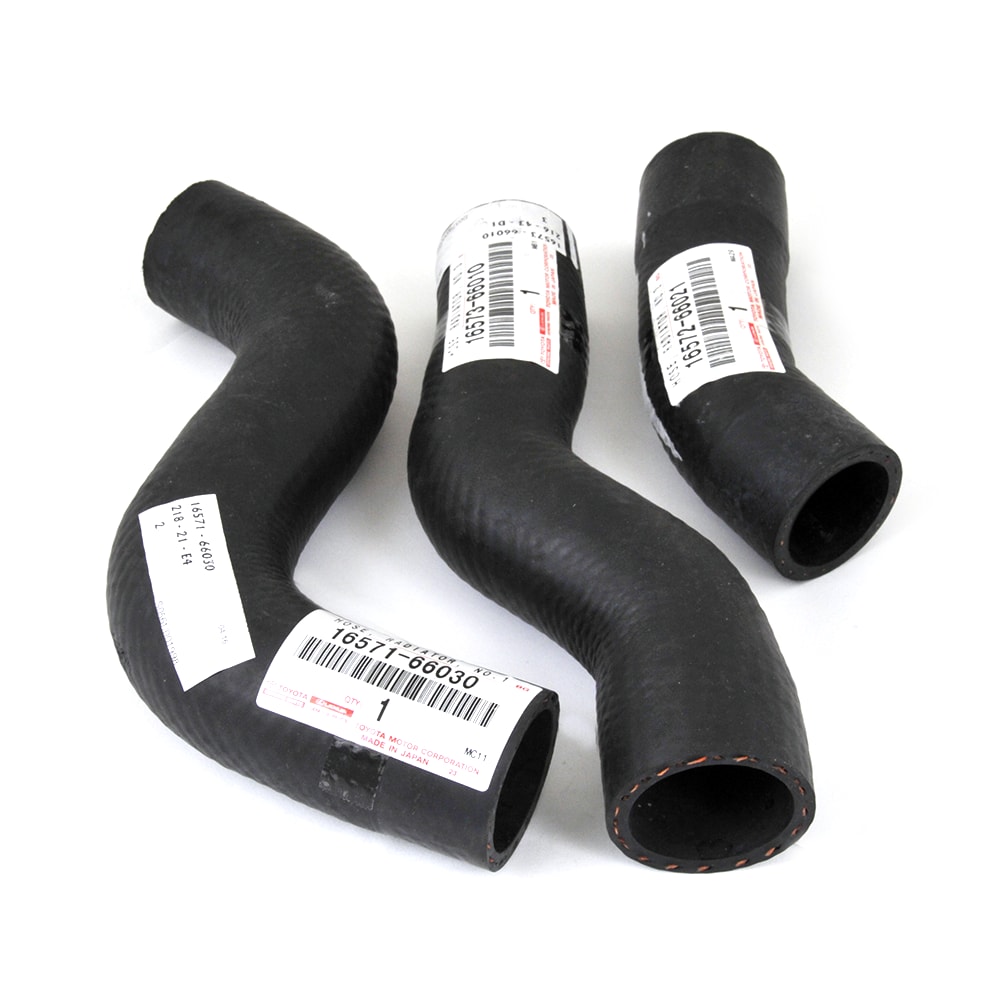

2.7 Hoses & Pipes

These transport coolant between all components.

Watch for:

• Cracks

• Bulges

• Leaks

A damaged hose = coolant loss = overheating.

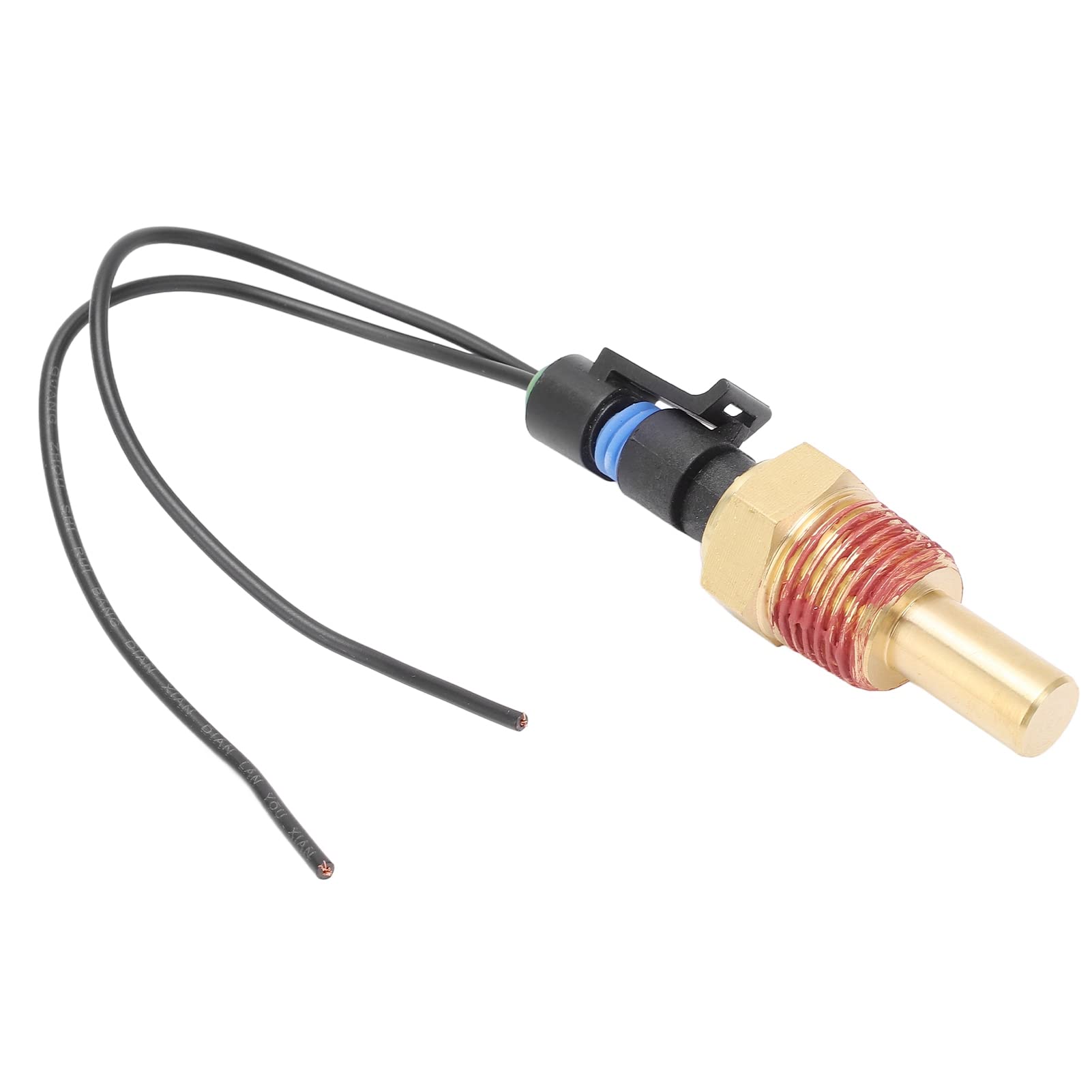

2.8 Temperature Sensors

Sensors monitor coolant temperature and send data to the engine ECU.

They control:

• Cooling fans

• Fuel mixture

• Dashboard temperature gauge

Faulty sensors can cause engine misbehavior or false overheating warnings.

3. How the Cooling System Works (Simple Explanation)

Here’s the step-by-step process:

Step 1: Engine burns fuel → produces heat

Step 2: Coolant absorbs heat from engine block

Step 3: Water pump pushes hot coolant to radiator

Step 4: Radiator cools it using airflow

Step 5: Cooled coolant goes back into engine

Step 6: Thermostat regulates flow

Step 7: Sensors & fan maintain temperature

This loop happens continuously while the engine runs.

4. Common Cooling System Problems

❌ Low coolant level

❌ Leaking hose

❌ Faulty water pump

❌ Stuck thermostat

❌ Radiator clog

❌ Air trapped in system

❌ Faulty temperature sensor

Ignoring these can lead to overheating and engine damage.

5. Cooling System Maintenance Tips

✔ Check coolant level monthly

✔ Replace coolant every 2–3 years

✔ Inspect hoses regularly

✔ Watch temperature gauge

✔ Clean radiator fins

✔ Service fans & sensors

Preventive care saves you from expensive repairs.

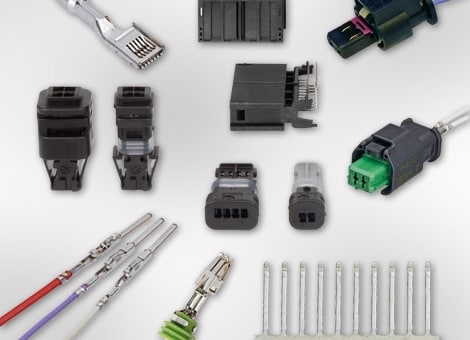

6. Cooling Systems Rely on Sensors & Wiring (Important)

Modern cooling systems depend on:

• Coolant temperature sensors

• Fan relay wiring

• ECU-controlled fans

A damaged wiring connector can cause:

• Fan not working

• Wrong temperature readings

• Overheating

Mechanics often use high-quality wiring and connectors from WirestoneAuto.com to ensure reliable temperature management in modern engines.

Final Thoughts

The engine cooling system is one of the most vital systems in your vehicle. Understanding how it works helps you:

• Prevent overheating

• Improve engine life

• Maintain fuel efficiency

• Avoid costly repairs
