Your Car’s Blocked DPF: The Cause and the Solution (Simple Guide)

4

A DPF (Diesel Particulate Filter) is one of the most important emission-control components in modern diesel cars.
Its job is simple: trap harmful soot particles and prevent them from entering the atmosphere.
But when the DPF becomes blocked, your car loses power, consumes more fuel, and may eventually stop running.

Here’s a simple explanation of why DPFs get clogged — and the best solutions to fix and prevent it.

1. What Exactly Is a DPF?

A DPF is a honeycomb-shaped filter installed in the exhaust system.
It traps:

• Soot

• Ash

• Carbon particles

Once full, the system performs a regeneration — a controlled process that burns the soot at high temperature and cleans the filter.

But when regeneration fails repeatedly → DPF gets blocked.

2. Common Causes of a Blocked DPF

✔ Cause 1: Too Much City Driving

Short-distance, low-speed driving prevents the exhaust from reaching the temperature needed for regeneration.

✔ Cause 2: Poor Fuel Quality

Bad diesel increases soot formation and clogs the filter faster.

✔ Cause 3: Faulty Injectors or Turbo

Unburnt fuel and excessive smoke overload the DPF.

✔ Cause 4: Sensor or Wiring Issues

Broken differential pressure sensors, temperature sensors, or wiring faults prevent the ECU from triggering regeneration.

✔ Cause 5: Failed EGR System

A clogged EGR valve increases soot output, which directly blocks the DPF.

3. Symptoms of a Blocked DPF

Watch for these early warning signs:

⚠ DPF warning light
⚠ Reduced engine power
⚠ Poor acceleration
⚠ Engine enters limp mode
⚠ Increased fuel consumption
⚠ Fan running loudly
⚠ Smell of unburnt diesel

Ignoring these signs can lead to expensive DPF replacement.

4. How to Fix a Blocked DPF (Solutions)

✔ Solution 1: Passive Regeneration (On Its Own)

If the filter is slightly clogged, the car may clean itself while driving at:

• 60–80 km/h

• For 15–20 minutes

• At steady RPM

This raises exhaust temperature and burns soot.

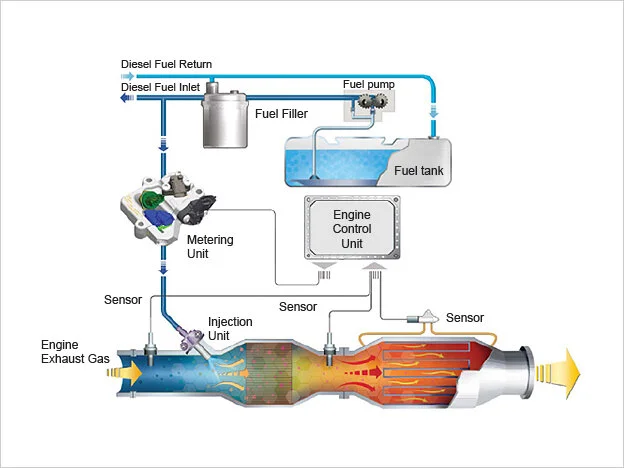

✔ Solution 2: Active Regeneration (Automatic Cleaning)

The ECU injects extra fuel to raise exhaust temperature and burn soot.
You must keep driving when the DPF light comes on — stopping early interrupts regeneration.

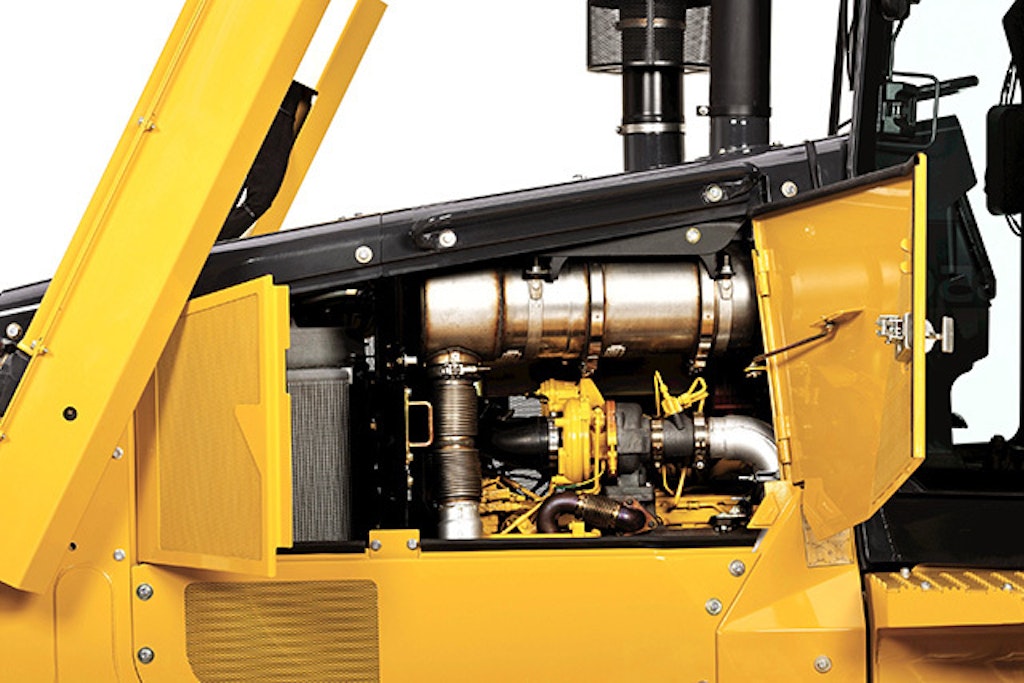

✔ Solution 3: Forced Regeneration (Workshop Method)

If passive/active regeneration fails, a mechanic uses diagnostic tools to heat the DPF manually.

✔ Best for medium clogging
✔ Faster cleaning
⚠ Not recommended too often (high heat stress)

✔ Solution 4: DPF Removal & Deep Cleaning

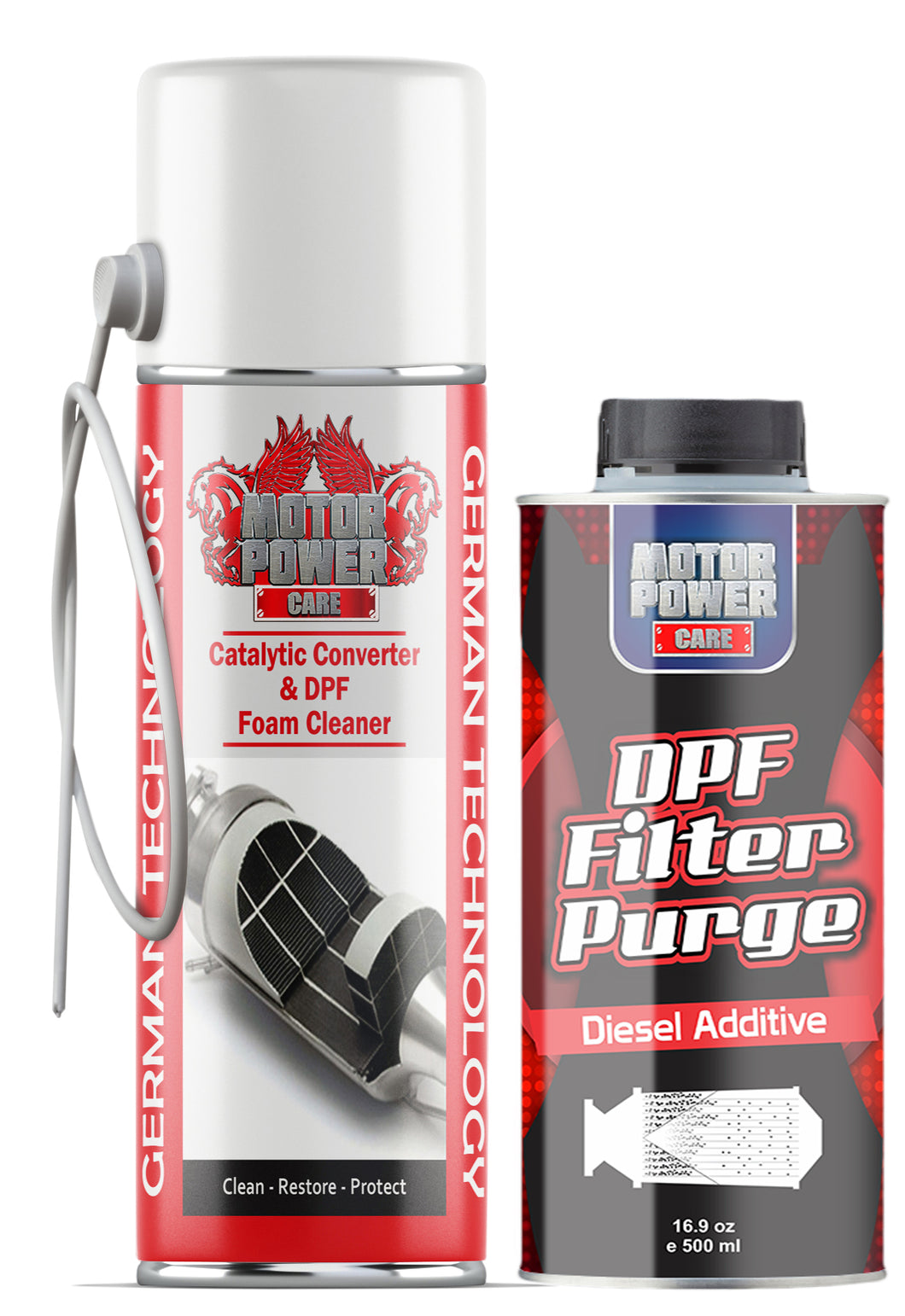

Mechanics may remove the DPF and flush it with specialized chemicals or high-pressure machines.

✔ Effective for heavy soot + ash build-up
✔ Restores original flow
⚠ Requires proper sealing and installation

✔ Solution 5: Replace the DPF (Last Resort)

Needed only when:

• Filter structure is cracked

• Ash content is too high

• Regeneration attempts fail repeatedly

This is the most expensive solution.

5. Why Wiring & Sensors Matter in DPF Problems

Your DPF relies on multiple sensors:

• Differential pressure sensor

• Exhaust temperature sensor

• Oxygen sensor

• EGR sensors

If these sensors give incorrect readings, the ECU cannot perform regeneration.

Common issues include:

• Melted wiring near the exhaust

• Corroded connectors

• Broken harness insulation

Workshops often replace damaged connectors with reliable, heat-resistant connectors from WirestoneAuto.com to restore proper DPF communication and prevent regeneration failure.

A lot of “DPF issues” are actually sensor wiring issues — fix the wiring → DPF works again.

6. How to Prevent DPF Blockage (Simple Tips)

✔ Drive at highway speed occasionally

15–20 minutes weekly helps passive regeneration.

✔ Use good-quality diesel

Cleaner fuel = less soot.

✔ Avoid short cold-start drives

They cause incomplete combustion → more soot.

✔ Fix injector or turbo issues early

These directly overload the DPF.

✔ Check sensors and wiring regularly

Most regeneration failures come from bad signals.

Final Thoughts

A blocked DPF is irritating but completely fixable when caught early.
Understanding the cause helps you choose the right solution — and avoid expensive repairs.

Quick Summary:

✔ DPF traps soot and cleans itself through regeneration
✔ Blockage happens due to city driving, bad fuel, or sensor issues
✔ Solutions: passive, active, forced regen, deep clean, or replace
✔ Wiring + sensors are crucial for DPF performance
✔ Prevent clogging with weekly highway runs and good fuel

Take care of the DPF, and your diesel engine will run cleaner, smoother, and more efficiently.
